Product Attributes

Model No.: PHBM03-XXD-ACDW-XXXX  Brand: ANTENKplace of origin: ChinaType: Single Hole TerminalsMaterial: CopperApplication: Transmission Of Electrical SignalsCharacter: High Temperature ResistanceSpecies: PlugProduction Process: CeramicShape: RectangularInterface Type: Dc/DcCertification: Ul

Supply Ability Additional Information

Packaging: bag packing,Tube packing, reel packingProductivity: 2000K/monthTransportation: Ocean,Air,ExpressPlace of Origin: ChinaSupply Ability: 2000K/monthCertificate: ISO9001HS Code: 8536909000Payment Type: T/T,PaypalIncoterm: FOB,CIF,EXW

Packaging Delivery

Selling Units:

Piece/Pieces

Package Type:

bag packing,Tube packing, reel packing

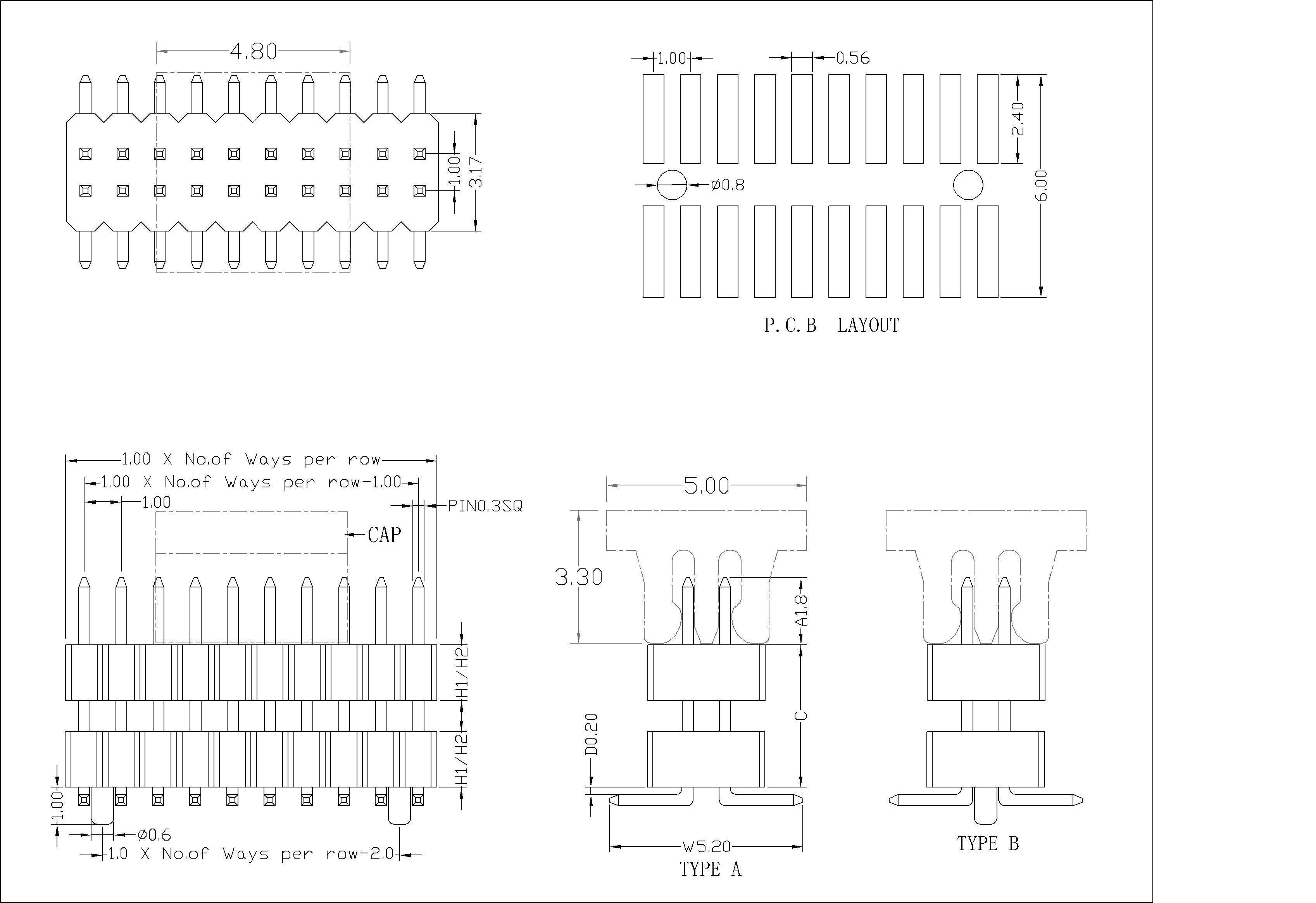

Antenk electronics in shenzhen offers a 1.00mm Pitch dual row, SMT connector with guide and no guide,Operating Temperature: -65 degree to plus 125 degree , Insulator Material:PA6T, PA9T, LCP, PIN available with tin plated, gold plated 1 u", 3 u", 5 u",10u" 15 u", and 30 u"

Specifications:

Current Rating: 0.75Amp

Insulation Resistance: 1000M ohms min

Contact Resistance: 20M ohms max

Dielectric Withstanding: AC500V

Operating Temperature: -65 degree to plus 125 degree

Contact Material: Brass

Insulator Material: PA6T,UL94V-0,Color:Black

Specifications:

Current Rating: 0.75Amp

Insulation Resistance: 1000M ohms min

Contact Resistance: 20M ohms max

Dielectric Withstanding: AC500V

Operating Temperature: -65 degree to plus 125 degree

Contact Material: Brass

Insulator Material: PA6T,UL94V-0,Color:Black

Product Attributes

Model No.: PHBR01-XXS-ADB-XXXBrand: ANTENKplace of origin: ChinaType: Single Hole TerminalsMaterial: CopperApplication: Transmission Of Electrical SignalsCharacter: High Temperature ResistanceSpecies: PlugProduction Process: CeramicShape: RectangularInterface Type: Dc/DcCertification: Ul

Supply Ability Additional Information

Packaging: bag packing,Tube packing, reel packingProductivity: 2000K/monthTransportation: Ocean,Air,ExpressPlace of Origin: ChinaSupply Ability: 2000K/monthCertificate: ISO9001HS Code: 8536909000Payment Type: T/T,PaypalIncoterm: FOB,CIF,EXW

Packaging Delivery

Selling Units:

Piece/Pieces

Package Type:

bag packing,Tube packing, reel packing

Shenzhen Antenk mainly produces connector products, and a 1.00 pitch single-row right Angle connector will be introduced below. Its PIN PIN is 0.300.30mm, which conforms to UL certification. Plastic plated: PA6T, PA9T, LCP, PIN available with tin plated, gold plated 1u,3u,5u,10u,15u and 30u.It is manufactured in a dust-free environment, and we provide after sales service support as well, and quality warranty period last half year

Specifications:

Current Rating: 0.75Amp

Insulation Resistance: 1000M ohms min

Contact Resistance: 20M ohms max

Dielectric Withstanding: AC500V

Operating Temperature: -65 degree to plus 125 degree

Contact Material: Brass

Insulator Material: PA6T,UL94V-0,Color:Black

FAQ

1, Can we get some samples? Any charges?

Yes, free existing labels, you need to pay shipping cost.

 2. How can we get a quote?

Contact us with specification: such as material, design, size, shape, color, quantity,  surface finishing, etc.

 3. Can you help with the design?Yes, Simply design free, special design need to pay.                                                                                          4. What's the trade term and payment term?Amount less than 1000, 100 percent  paid before production, more than 1000 can be negotiated!

T/T, Western Union, PAYPAL etc.

5.  May I have new sample made with my design for confirmation?

Yes. Sample charge means set up charge for production line, little quantity  we
